Project 02 · Aquasub Engineering
Unit V Foundry
Installation & Erection
Aquasub Engineering
Equipment positioning, extraction ducting, hoppers, process structures, stack erection and final plant integration.
Project scope
Installation across the foundry line
Equipment positioning, ducting, hoppers, process structures, vertical stack work, conveyors and completed installation.
Project details
- Client
- Aquasub Engineering
- Project
- Unit V Foundry
- Heavy lifting
- Equipment positioning and installation
- Extraction
- Ducting installation
- Process structures
- Hoppers and silo structures
- Vertical works
- Stack and chimney erection
- Plant integration
- Conveyors and material handling
- Archive
- Progress to completed installation
01
Equipment positioning
Major equipment positioned inside Unit V Foundry
Installation carried out with mobile-crane support around the equipment line.
Equipment installation in progress using the Hi-Tech Fab mobile crane.
Large process equipment being positioned inside the Unit V Foundry during installation.
02
Ducting & process systems
Ducting, hoppers, structures and vertical works
Extraction ducting, hopper and silo structures, process framing and vertical stack erection.

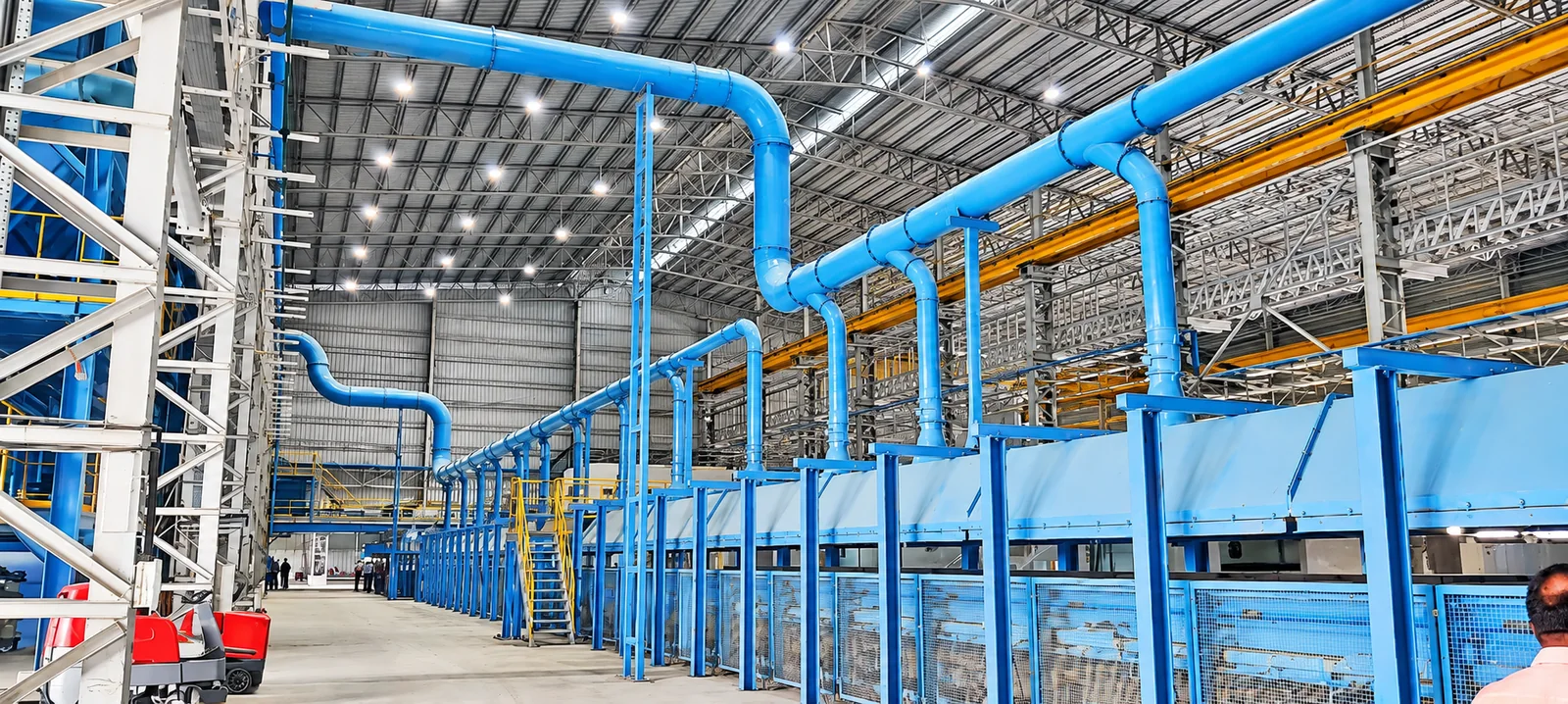

Ducting and extraction-system installation in progress inside the foundry.

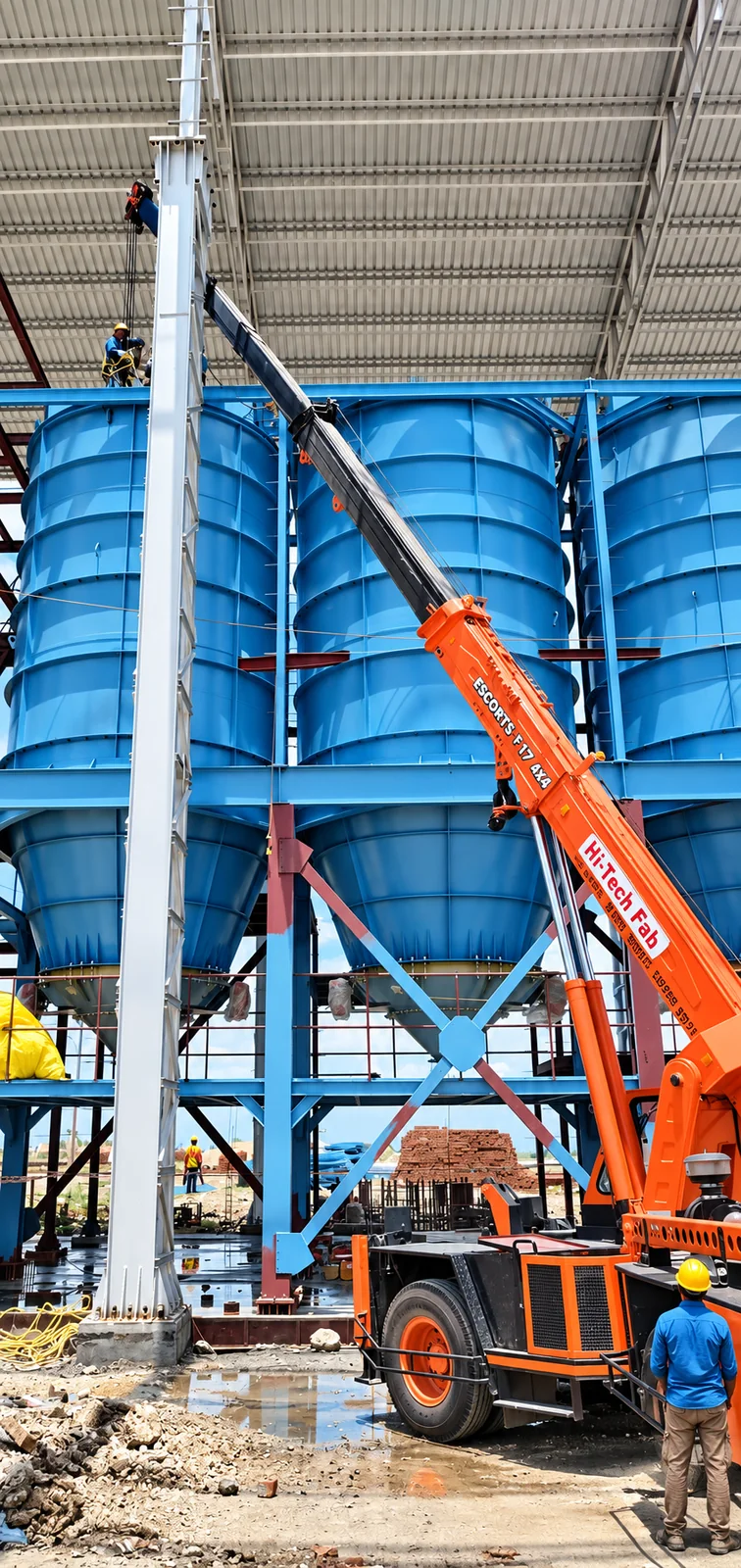

Hopper and silo structures under erection with crane support.
Process structures and hoppers progressing through installation and integration.
Vertical stack and chimney erection work in progress.
Connected installation
03
Plant integration
Integrated production line
Conveyors, extraction ducting and production equipment integrated into the completed line.

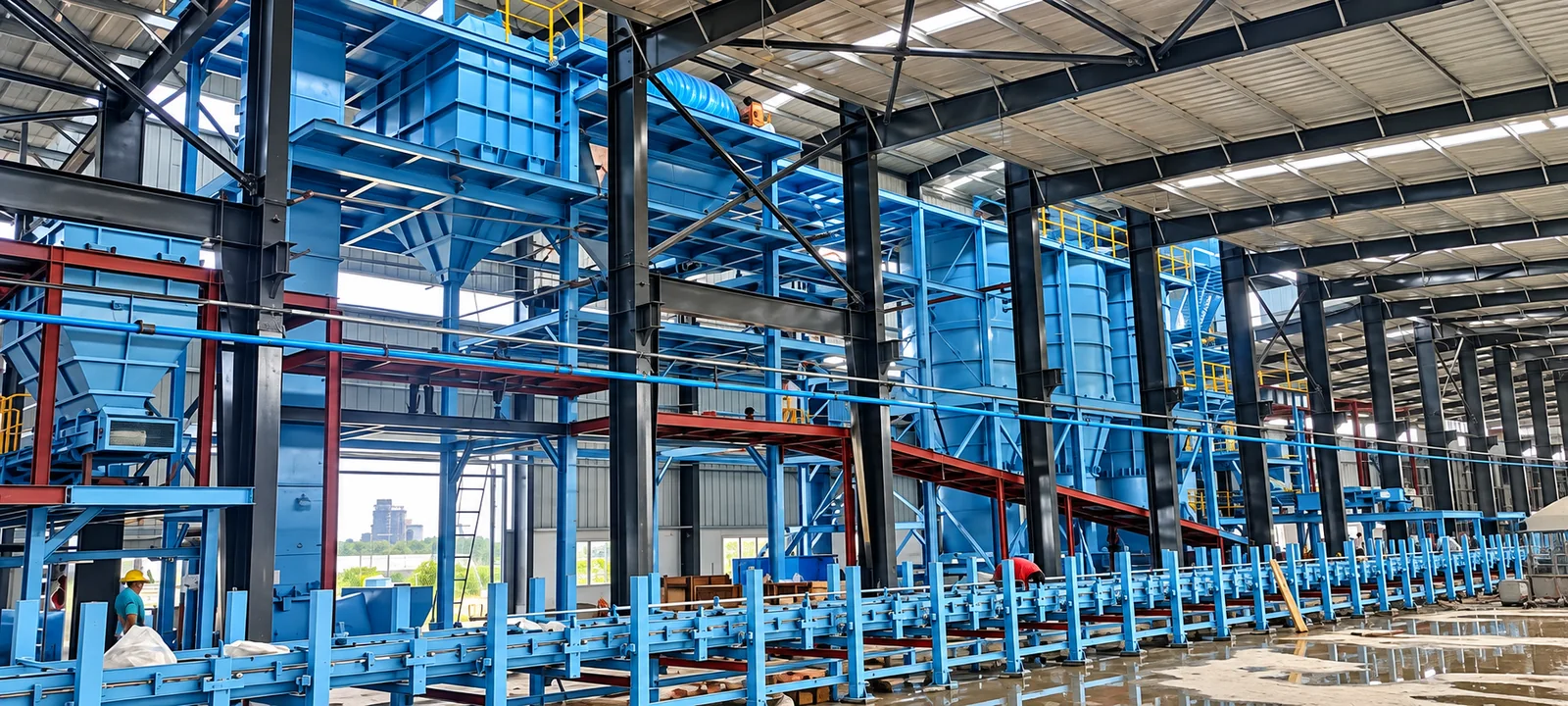

Near-complete production line with integrated conveyors, ducts and process equipment.

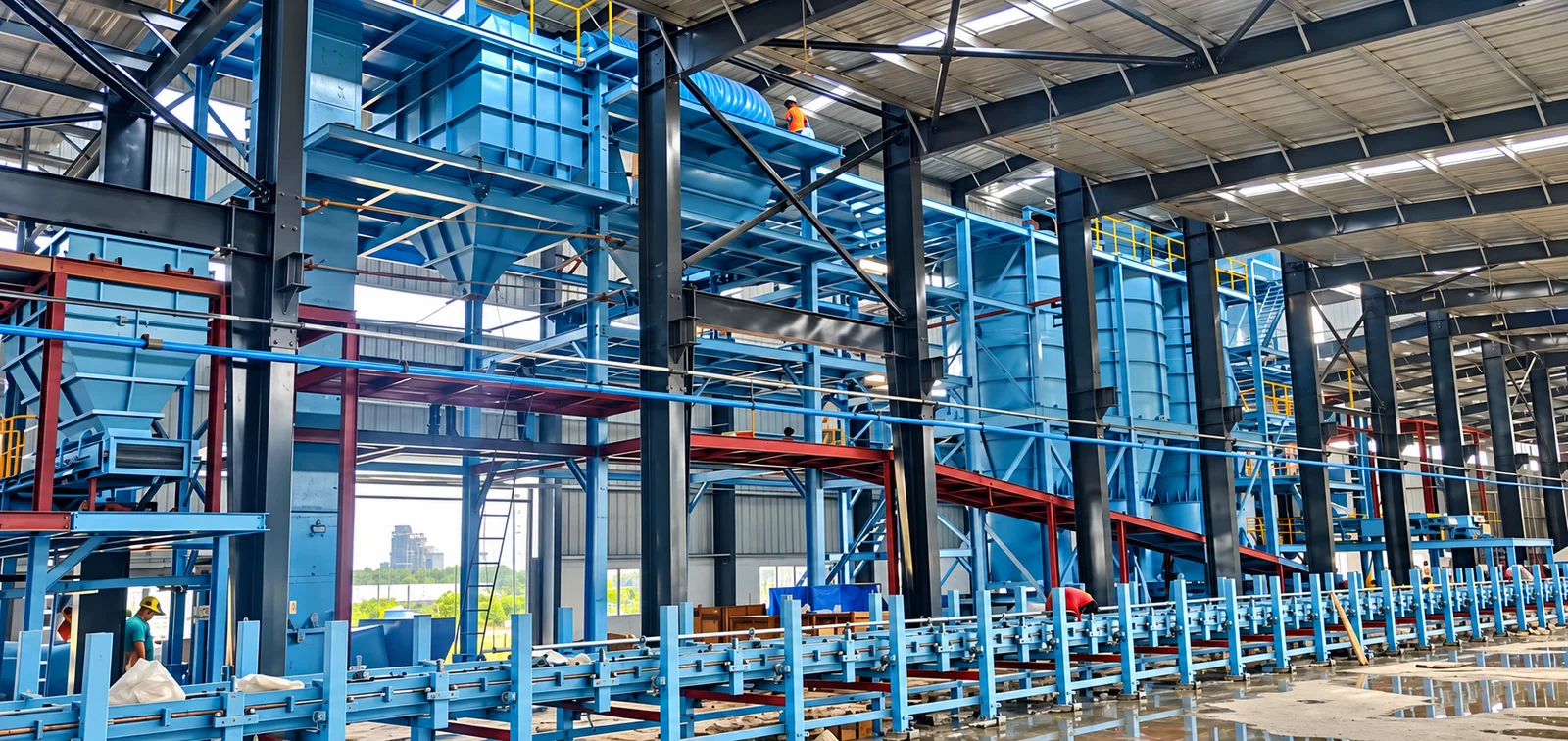

Completed equipment line and associated material-handling installation.
Equipment positioning → systems integration → completed installation
