Project 03 · 2019-2020 · Perundurai
From steelwork
to a complete sand plant.
JS Auto Cast Foundry India Ltd
Perundurai · Tamil Nadu · India
Complete sand-plant structures with hoppers, dust extraction, fume-extraction system ducting and DISA equipment.
Project scope
Complete sand-plant structures and equipment erection.
Hi-Tech Fab completed 400 tons of fabrication and 520 tons of total erection at JS Auto Cast Foundry India Ltd, including 120 tons of DISA equipment.
Project details
- Client
- JS Auto Cast Foundry India Ltd
- Location
- Perundurai, India
- Duration
- 2019-2020
- Fabrication
- 400 tons
- DISA equipment
- 120 tons
- Total erection
- 520 tons
- Structures
- Complete sand plant with hoppers
- Systems
- Dust extraction and fume-extraction ducting
01
Structural erection
The sand-plant structure takes shape.
Primary columns, main framing and hopper support structures established the plant layout.

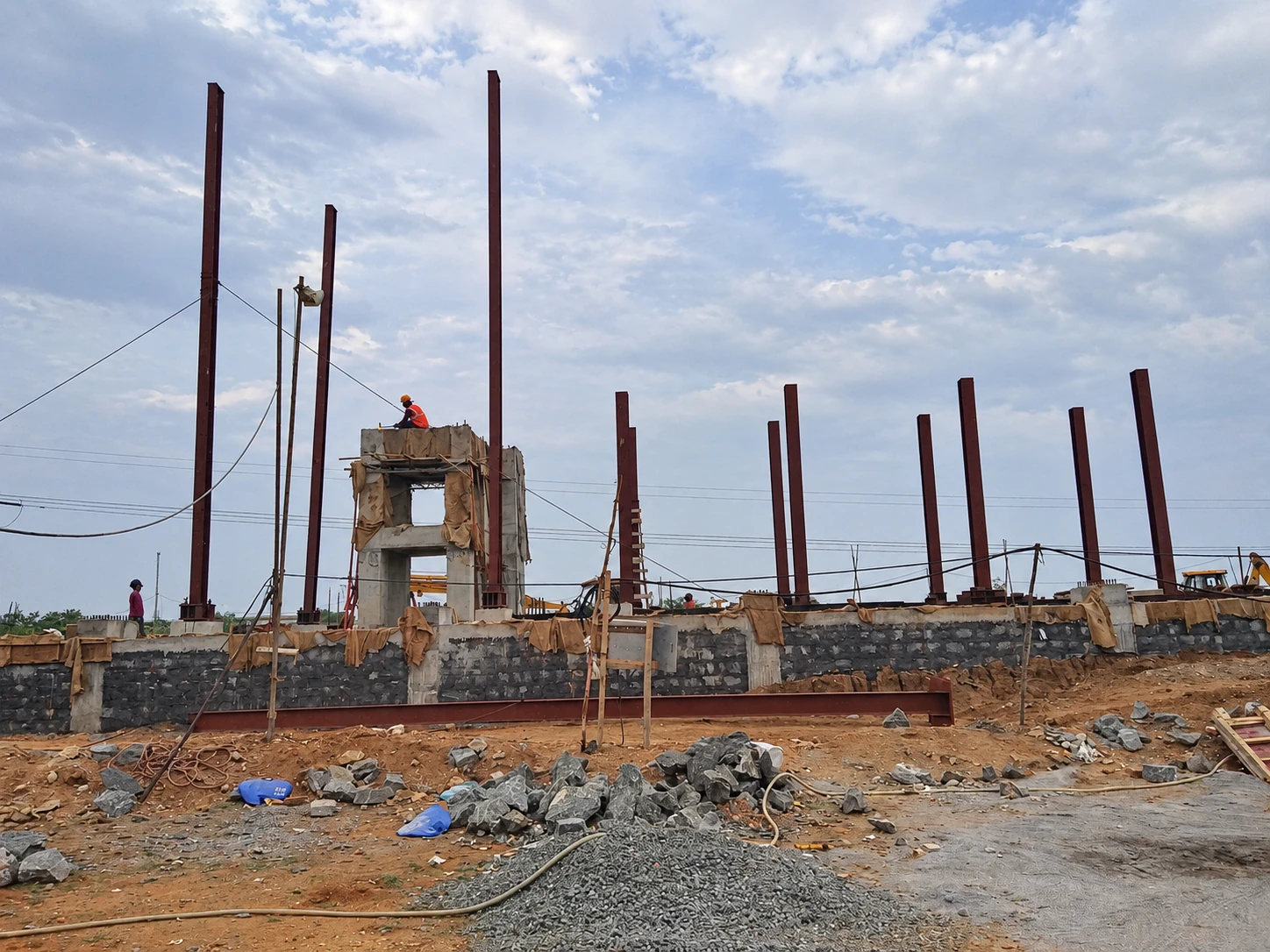

Main steel columns going up across the foundry foundations.

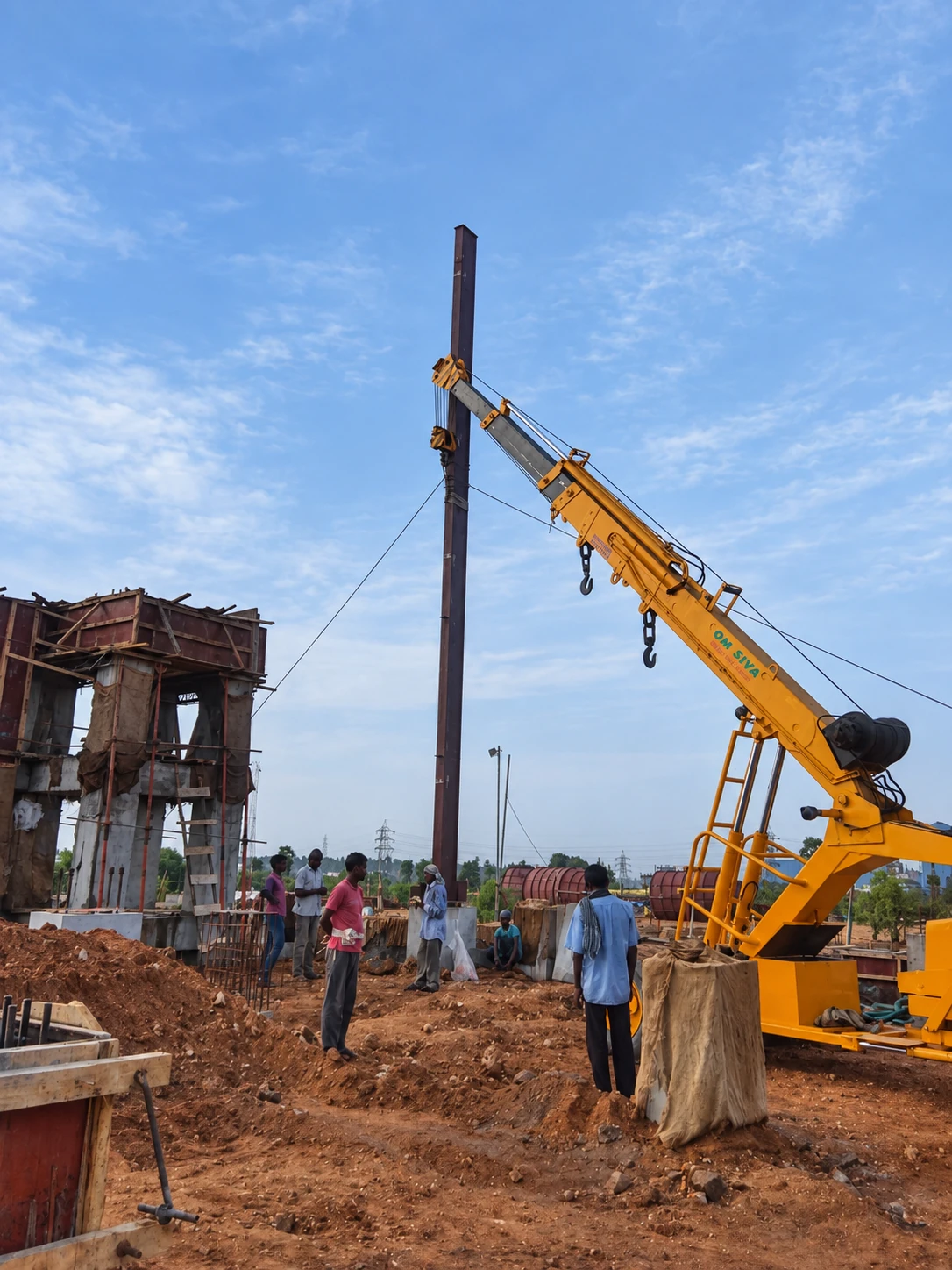

Primary steel-column erection with mobile crane support.

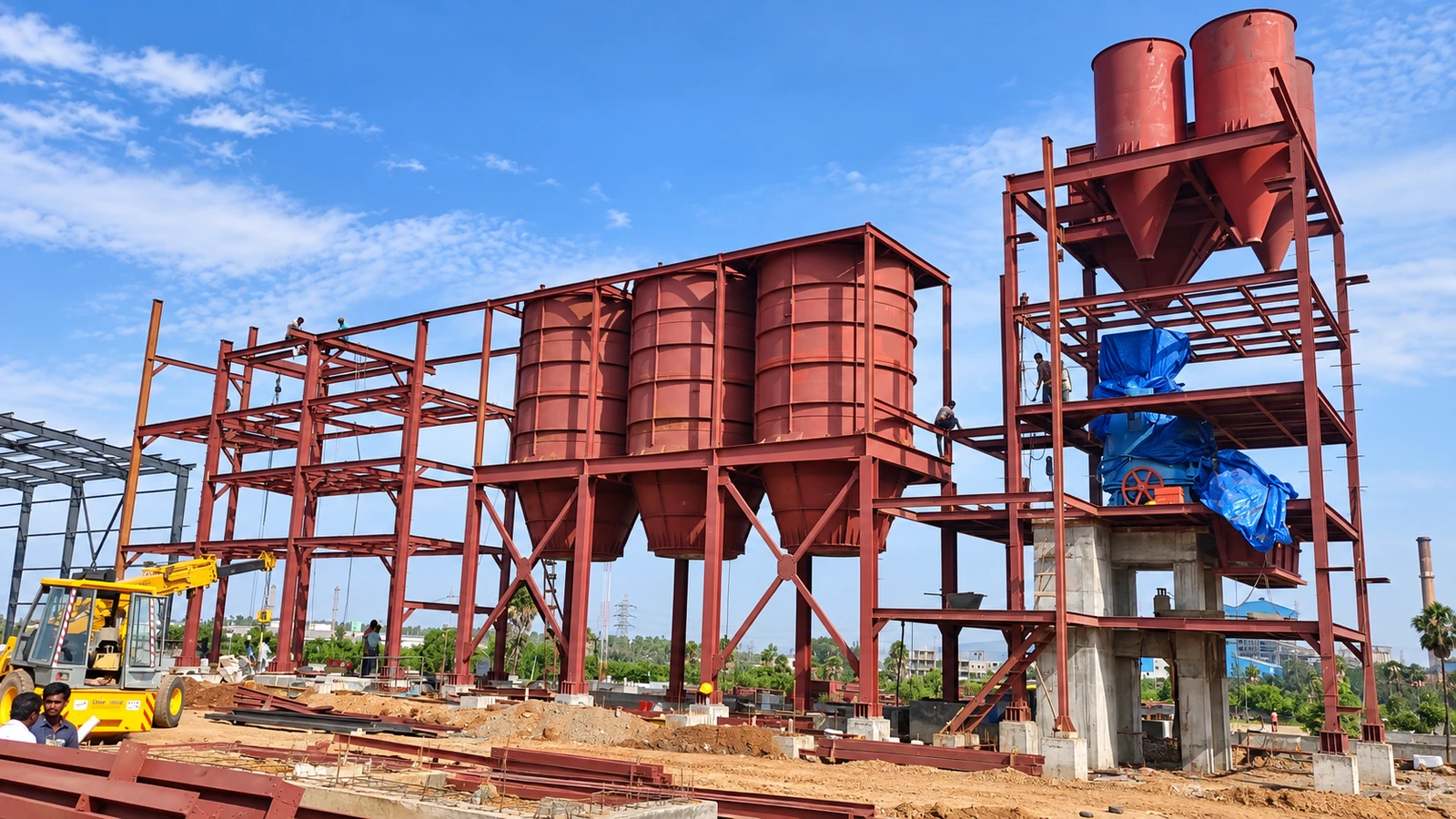

Main structural frame and hopper support bays taking shape.
02
Equipment & extraction systems
Hoppers, DISA equipment and extraction systems move into position.
Process hoppers, DISA equipment, dust-extraction equipment and fume-extraction systems were integrated into the structural frame.

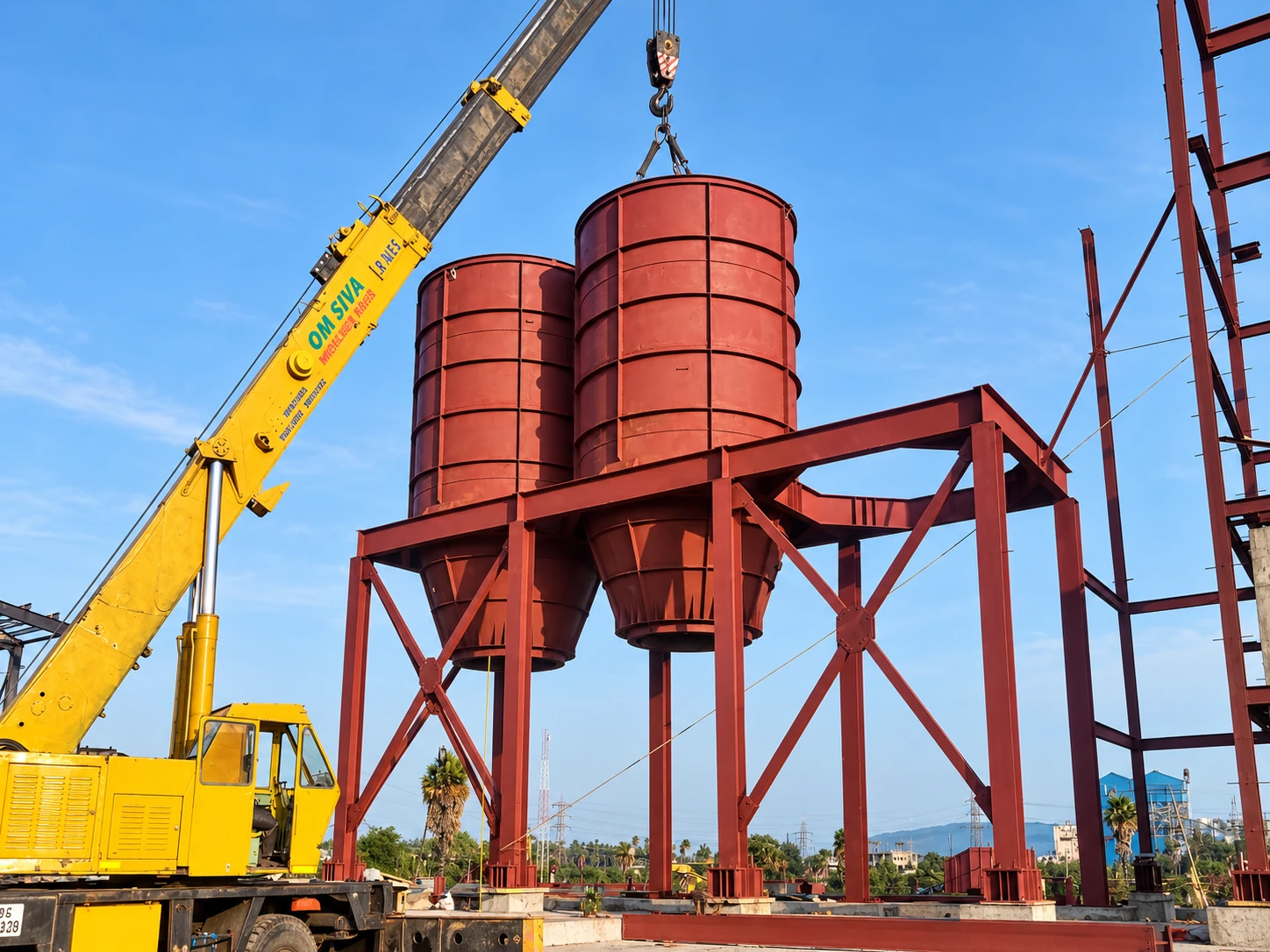

Twin process hoppers lifted and positioned on the structural frame.

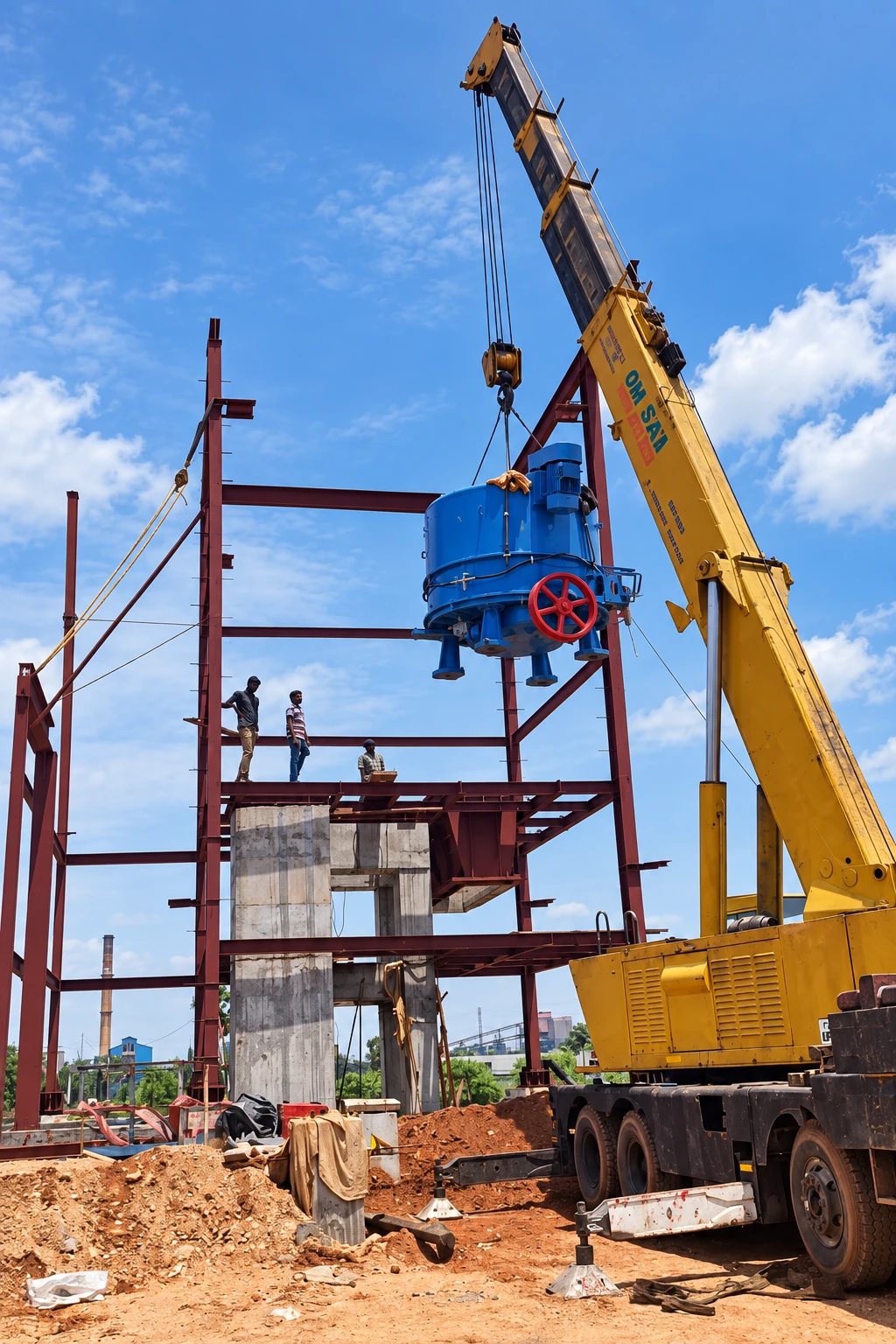

DISA equipment installation within the sand-plant structure.

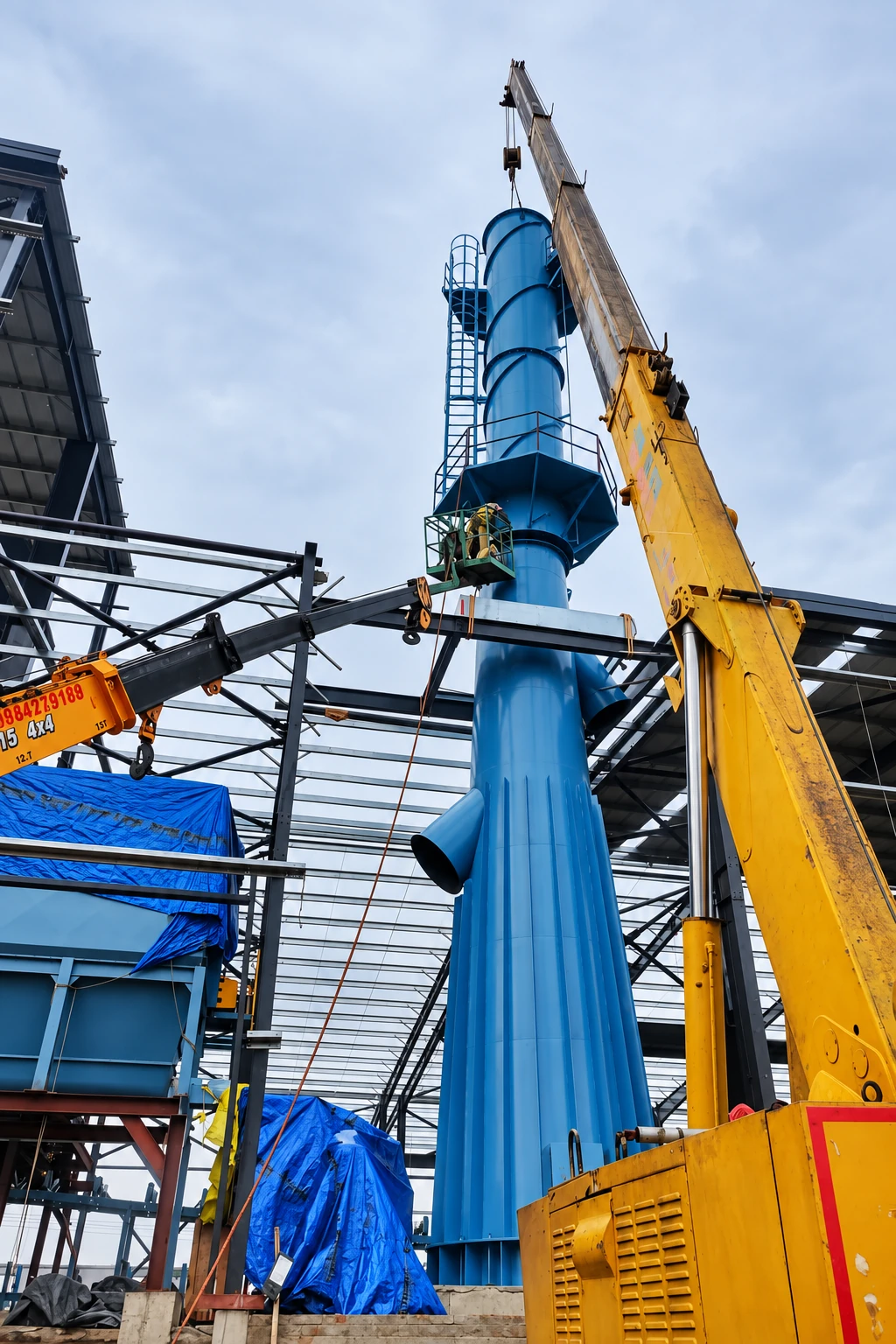

Dust- and fume-extraction equipment installation progressing alongside the structural work.
Connected systems
03
Plant integration
The complete foundry systems come together.
Material handling, process equipment and extraction systems were brought together across the completed sand-plant structure.

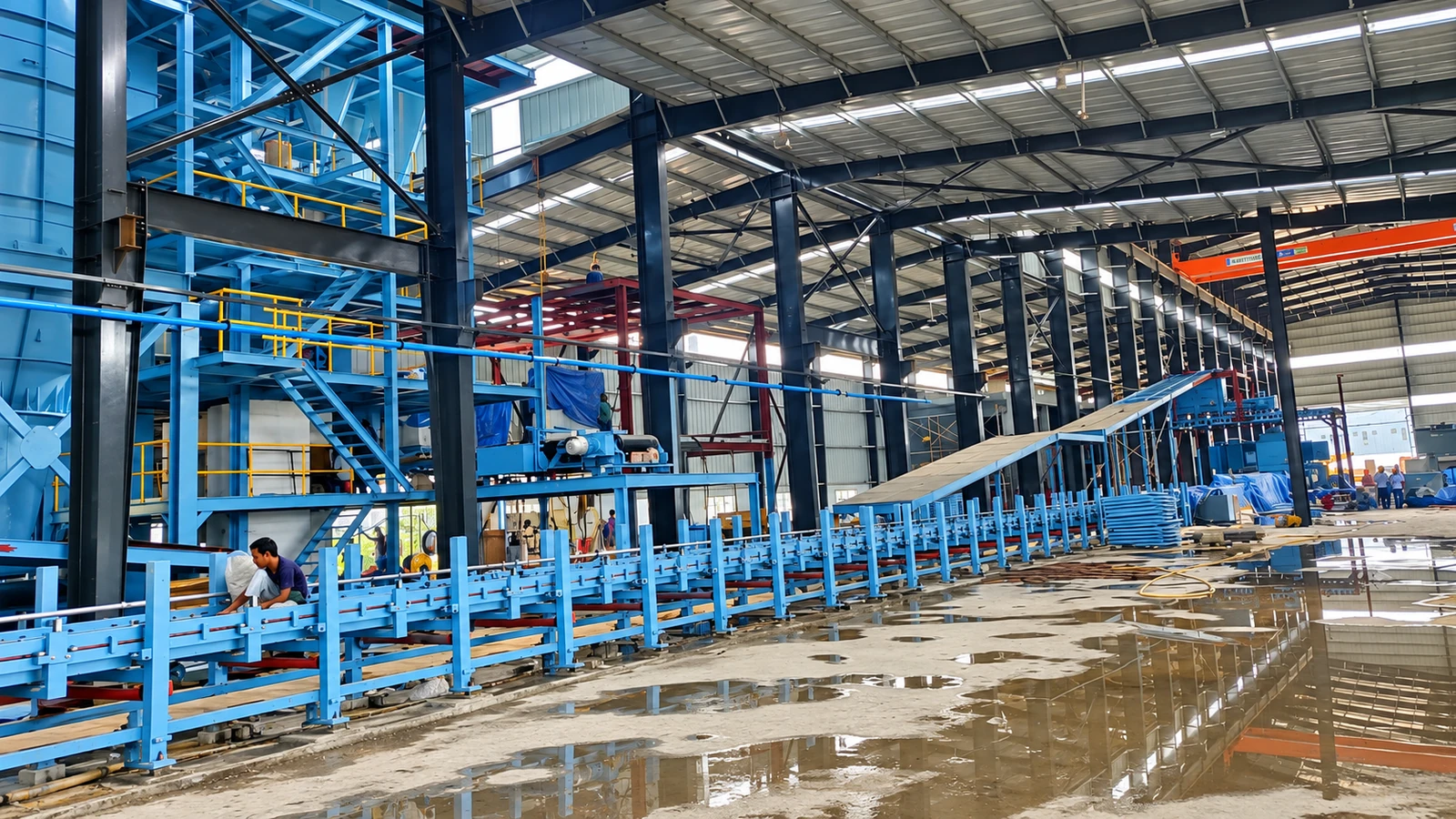

Material-handling conveyor installation extending through the foundry interior.

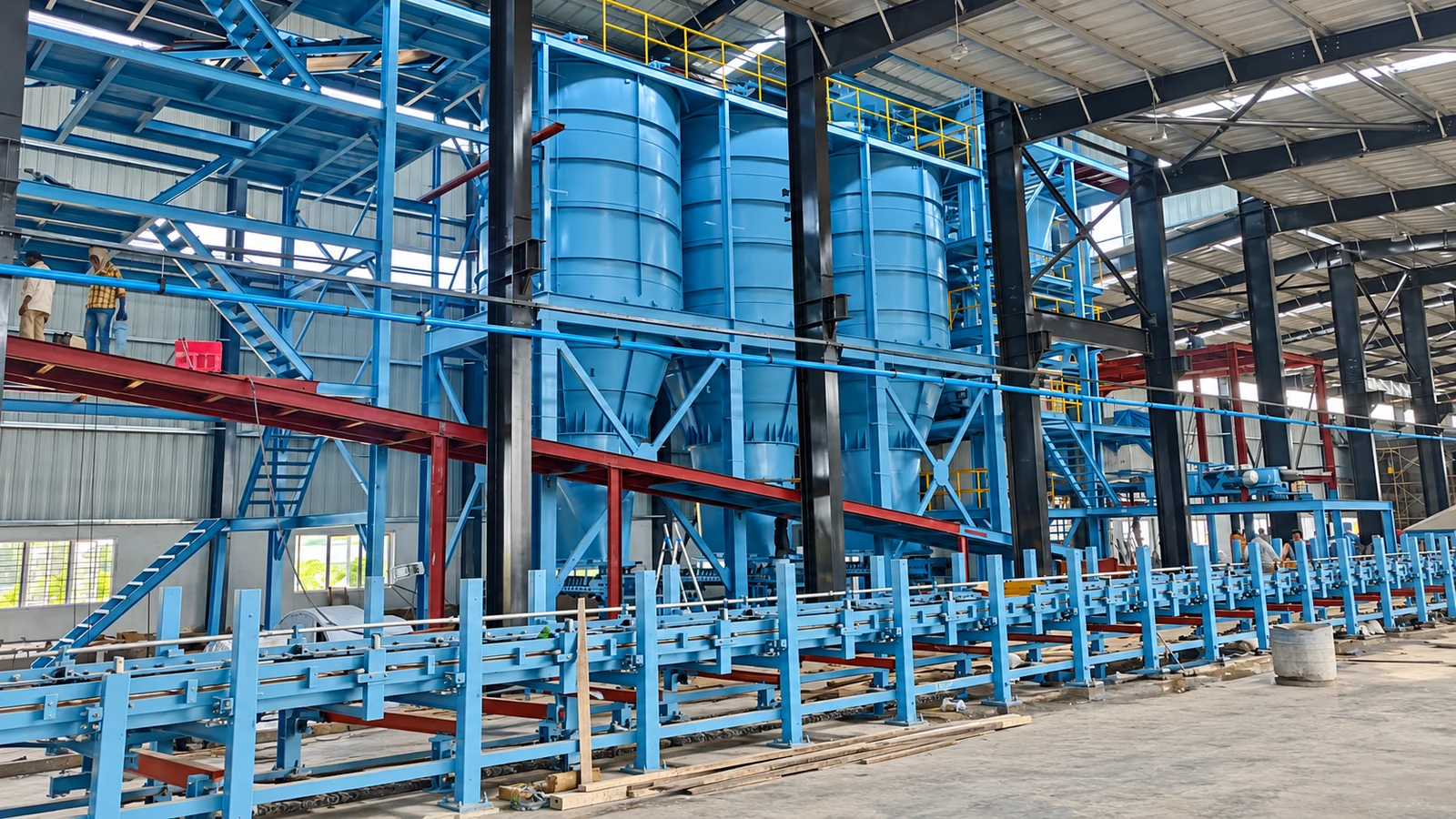

Integrated sand-plant structures and process equipment inside the completed foundry bay.
400 T fabrication → 120 T DISA equipment → 520 T total erection
